P7

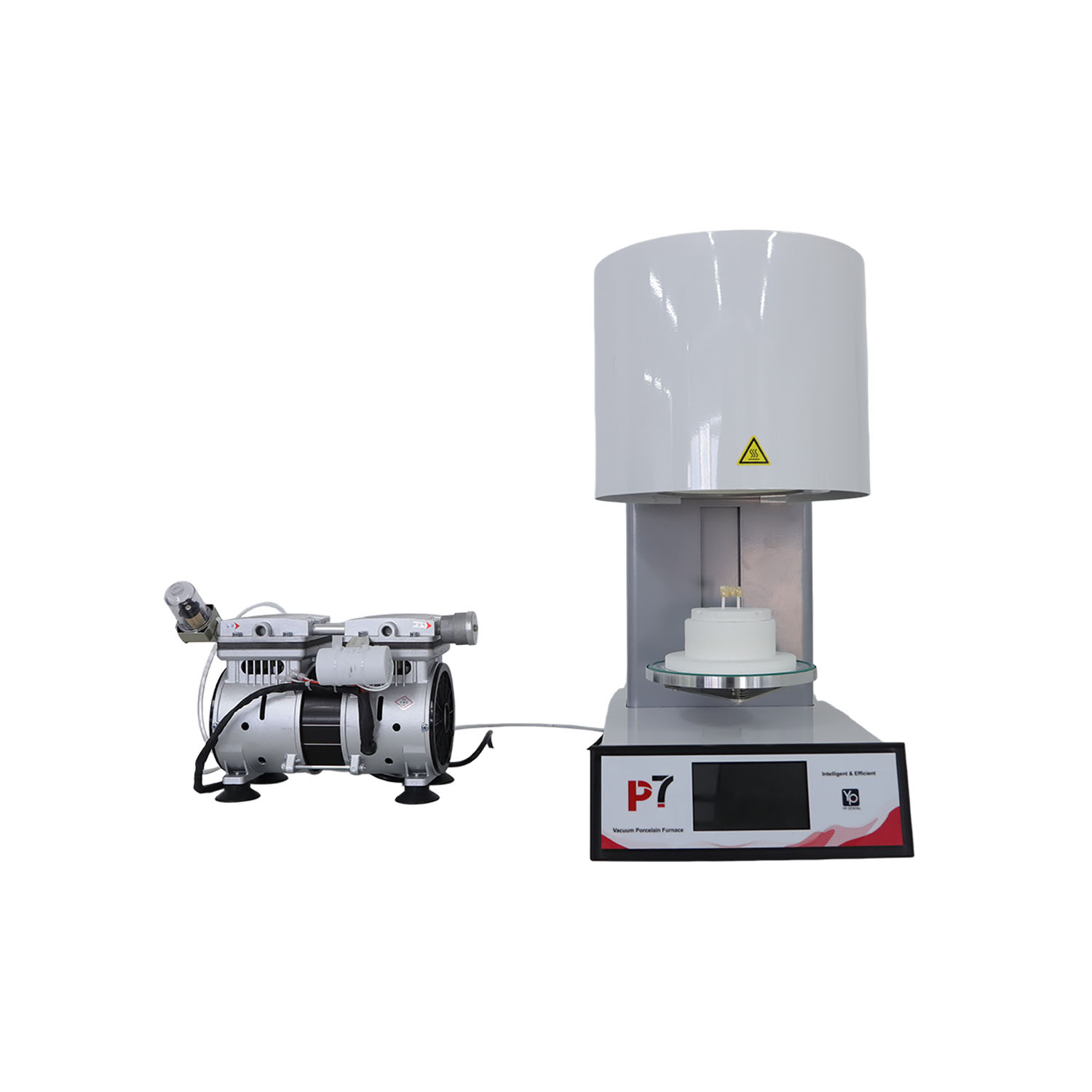

YP Vacuum Porcelain Furnace

Quotation

OPERATION

The velocity of temperature increasing:

The max temperature:

The time which can be kept at the max temperature:

Vacuum level:

200c/min max.

1200℃ max

2H46Min

1-101%

LECTRIC POWER

Operation range:

Electric current:

Power:

100-120V 50/60HZ 230V 50/60HZ

14.5ampere@110V 7.0ampere@230V

max 1500w

TYPICAL SPECIFiCATION

WXDXH:

Usable measure (firing chamber):

Net weight：

Weight include the package:

width 42cm Depth 49cm Height 68cm

9cm 3.5”

19Kg

23.5Kg

The perfect P7 is the cost-effective
porcelain furnace in the world

Use real color touch screen,simple and easy to operate.
Use Sr-3 soft fire regeneration technology ,the strength of the tooth body do better performance.

P7 ceramic furnace provides the perfect solution for users with low cost and high
performance and the complexity integration circuit provides a solid guarantee for
the efficient sintering.Use real color touch screen,simple and easy to operate.
Use servo motor, tray speed adjustable, and at the beginning of firing process,
notonly pre-drying time can be set, the location of the tray also can be set.P7
porcelain furnace desktop provides four shortcut program button, the user can
save the common program in it.

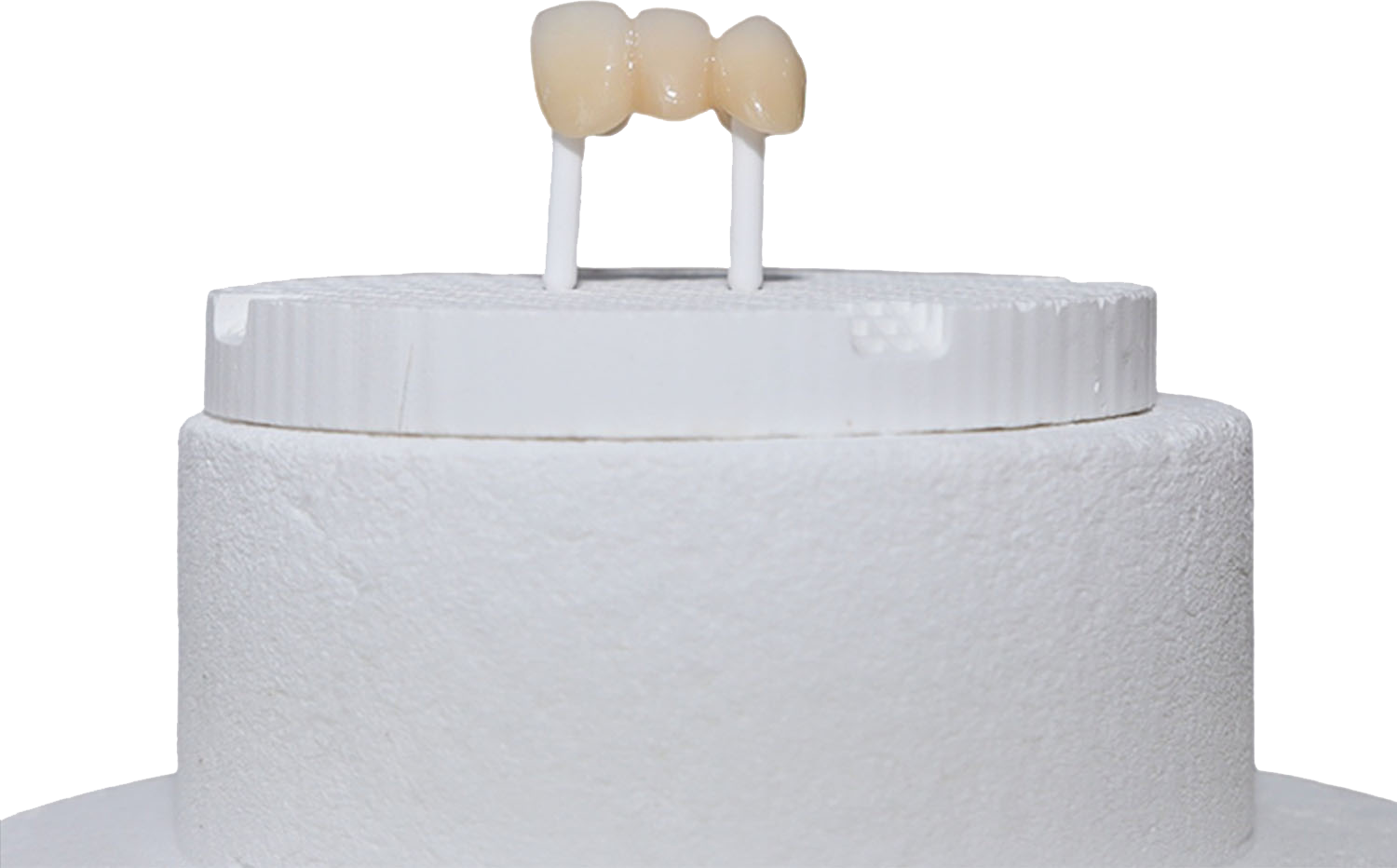

P7 both in the porcelain transparency degree, porcelain shape retention, have a
very perfect performance, using Sr-3 soft fire regenerationtechnology, the strength
of the tooth body do better performance. Use this technology, the porcelain products
durable and life extension.PHOENIX also show perfect performance in the
application of low temperatureporcelain powder.The position of the tray can be set
independently, it can make the low temperature porcelainpowder water evaporation
controllable, so the porcelain color is more natural.
