Unleash ultimate productivity
Designed as an open system for dental clinic and practice labs, the D510 is ideal for milling zirconia, glass ceramic and pre-mill abutment. Better choice for same day visit, patients could visit and leave with perfect smile.
Dry&Wet
Method
5
Axis
12
Tools
90°
Vertical Milling
10-inch
Screen
±0.005mm
Precision
Dry & Wet
Processing modes
The three types of fixtures can be easily switched to meet the processing needs of different materials.

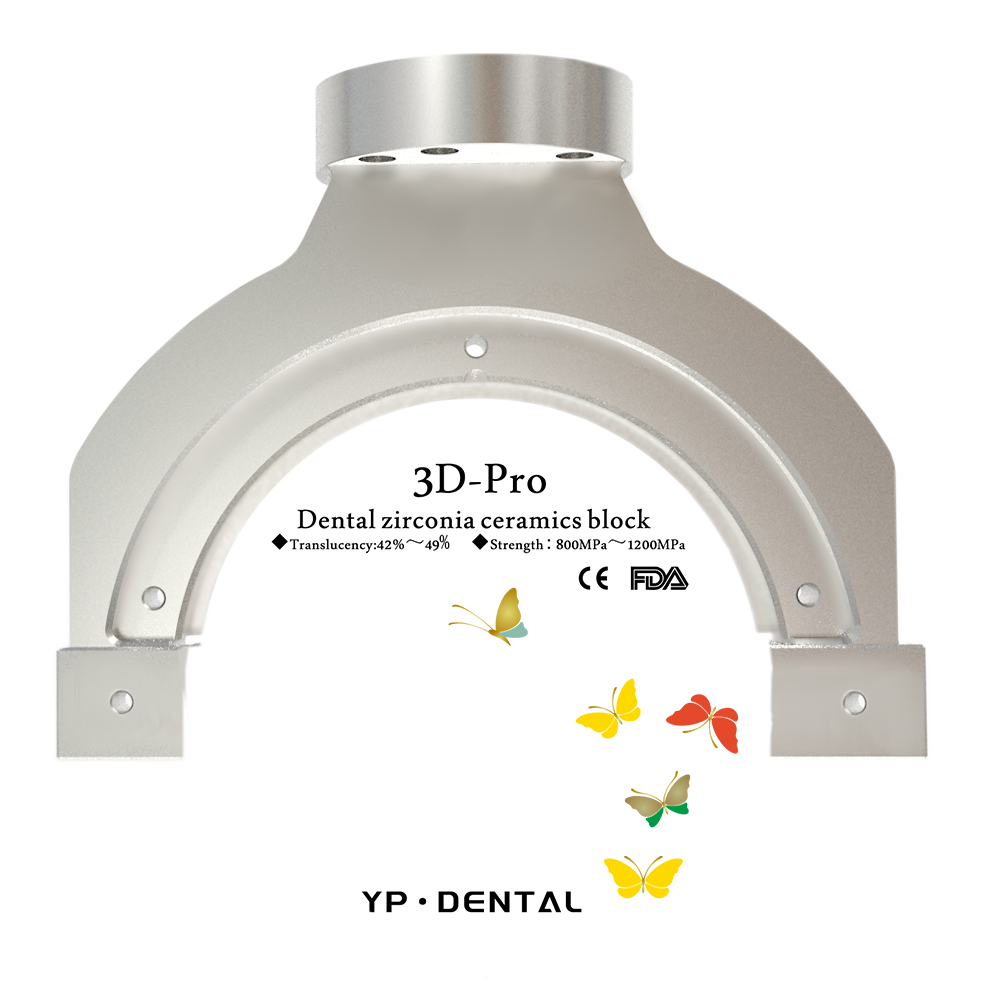

98mm C-clamp

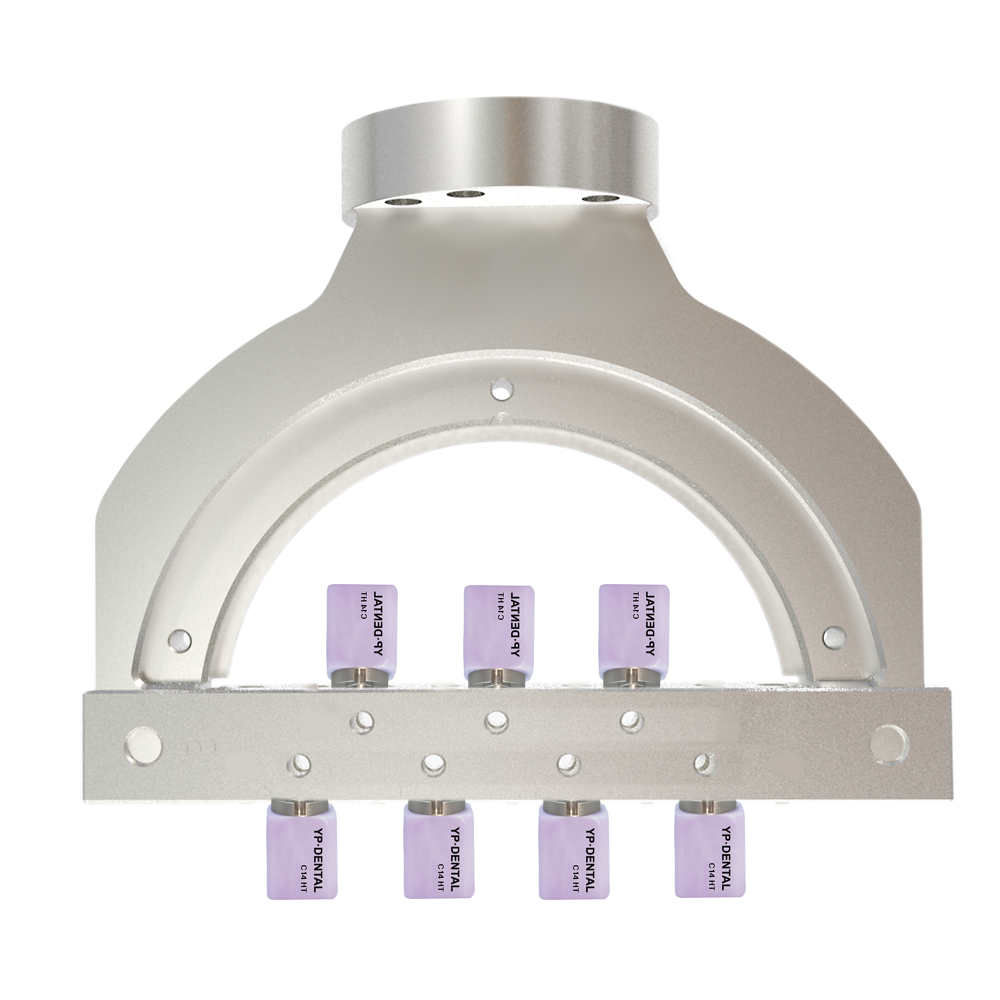

7 positions glass ceramic holder

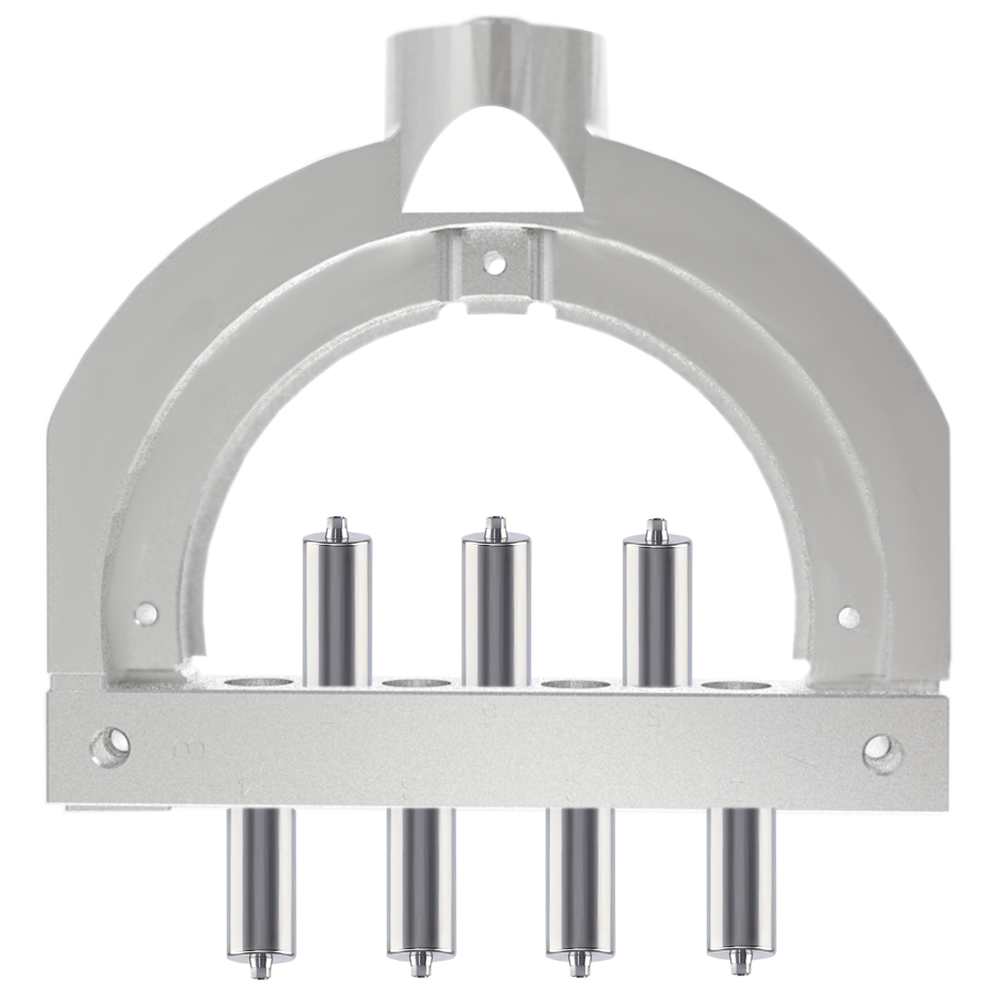

7 positions pre-mill abutment holder
Zirconia
PMMA
PEEK
Wax
Glass ceramic
Pre-mill abutment
Vaneer
Inlay&Onlay
Inner Crown
Full Contour of Posterior
Implant Full Contour
Full Contour Bridge(≤3 Unit)
Full Contour Bridge(≥4 Unit)
Inner Crown Bridge(≤3 Unit)
Inner Crown Bridge(≥4 Unit)
Implant Abutment
Powerful Spindle
Super performance, strong power
The spindle has 1000W power, 42mm diameter, 0~60000rpm speed, which can easily mill zirconia, glass ceramics and even pre-mill abutment.
Servo Motor Drive
5-axis, More stable
The servo motor of the HCFA provides great guarantee for the precision and stability of milling.
D510 utilizes precision ball screws, ensuring the highest level of precision and stability for the milling machine.
90° Vertical Milling
The ultimate pursuit of details
B-axis rotation angles up to -130°~+30°, so 90° vertical milling and large angle implants can be processed. The 90° Vertical Milling is good for milling of the anterior and allows for a fine texturing of the denture, providing the customer with a more perfect result.
Resume when Interrupted
Safer, more assured
In case of an unexpected situation, processing can be automatically resumed from the last interrupted step, avoiding duplication of work and improving processing efficiency
12 Tool
Super performance, strong power
- The tool magazine can be equipped with 12 tools to meet the processing requirements of different materials. The tool can be changed automatically during the processing.
10-inch
Intelligent Control System with Touch Screen
- 10-inch touch screen provides users with a more comfortable human-computer interaction interface.
Remote control - Open CAM system
Automation
Automatic Calibration, Maintaining Master Level
- Automatic calibration function not only saves time but also ensures the equipment remains in optimal working condition at all times
| Zirconia Milling Burs | Glass Ceramic Milling Burs | Metal Milling Burs |
|---|---|---|
| T1：Ball end, R1.0*D4*50L | T6：Ball end, R1.25*D4*50L | T9：Ball end, R1.5*D4*50L |
| T2：Ball end, R0.5*D4*50L | T7：Ball end, R0.5*D4*50L | T10：Ball end, R1.0*D4*50L |
| T3：Ball end, R0.3*D4*50L | T8：Ball end, R0.3*D4*50L | T11：Ball end, R0.75*D4*50L |
| T4：Ball end, R0.15*D4*50L | T12：Ball end, R0.5*D4*50L | |
| T5：Flat end, R0.75*D4*50L |
| Device Name | YP D510 Milling Machine |
|---|---|
| Processing mode | Dry or Wet |
| Axis | 5 axis |
| Device Size | 630mm*530mm*700mm |
| Device Weight | 120 kg |
| Power Input | 220V, 50/60Hz, 3000W |
| Air-pressure Input | 0.5~0.75MPa |
| Spindle Speed | 0~60000RPM |
| Spindle Power | 1000W |
| Spindle Cooling Method | Air Cooling |
| Processing Accuracy | Positioning accuracy: 0.01mm / Repeated accuracy: 0.005mm |
| Rotation Axis Angle | A axis: 360° / B axis: -130°~+30 |
| Tool Diameter | 4mm |
| Number of Tools | 12 tools |
| Tool Changing Method | Automatic tool change |
| Clamp | C-Clamp / Block holder / Premill abutment holder |
| Processing Materials | Zirconia, PMMA, PEEK, Glass ceramic, Premill abutment |
PRODUCT INFORMATION
Technology
Camera Number
Scan Field
Scan Depth
Accuracy
Repeatability Precision
Color
Anti Fog System
Full Jaw Scanning Time
True Color
Handpiece Enclosure
Handpiece Dimension
Handpiece Weight
Tip Types
Number of Tips included
Autoclave Cycle for Tips
Calibrator
Scanning Control
Image Transfer Interface
Cable Length (m)
Power Supply Type
Supply Voltage (V)
Supply Current (A)
Storage Temperature (°C)
Staring Scanning with Coded Structured Light
X 3
18 X 16mm
15mm
≤15μm
≤10μm
Full HD
Intelligent Heating
1 min
Yes
Aviation Aluminum Alloy
216 x 40 x 36 mm
228g
3 types (N/M/D) High Temperature Disinfection
5
2o times
Automatic
Button
USB 3.0
2m
AC/DC Medical Power Adapter
100-240V/50-60Hz
0.7-1.5A
-10°C- 55°C
PRODUCT INFORMATION
Standard Warranty
Extended Warranty
1 Year
2-3 years available
SOFTWARE
Types of Scanning
Image Store
3D Data Preview
Output Files
Cloud Service
Cloud Service Price
Direct Compatibility with Dental CAD
Main Image Processing Tools
Margin Line Drawing
Occlusal Match
Undercut
Data Comparison
AI Technology
Software License
Software Upgrade
Data directly to other platforms with API
Orthodontics, Implant, Restoration
Yes
Yes
STL, PLY, PTY (encrypted for user)
Yes
5GB/free
Exocad*
Trim/Edit/Recover/Lock, etc.
Yes
Yes
Yes
Yes
Auto Tissue Remove, Overlap Correct, etc.
Free
Free
Available
PC REQUIREMENTS
CPU
RAM
Hand disk
Graphics card
Computer operating System
Display
Intel i7-8700(3.2GHz）and above
DDR2400 16G and above
Solid state drive 120G and above
NVIDIA GTX1060 (6G) and above
Windows10*64 bit
Resolution 1920×1080 and above
